Stepper motor driver SMD‑2.8 carrier kit
Voltage
12 – 24 VDC
Max. current per phase
1.3 - 2.8 A
Microstepping
1/1 - 1/128
Control methods
Analog input, STEP/DIR
Version
in an open housing with DIN clamp

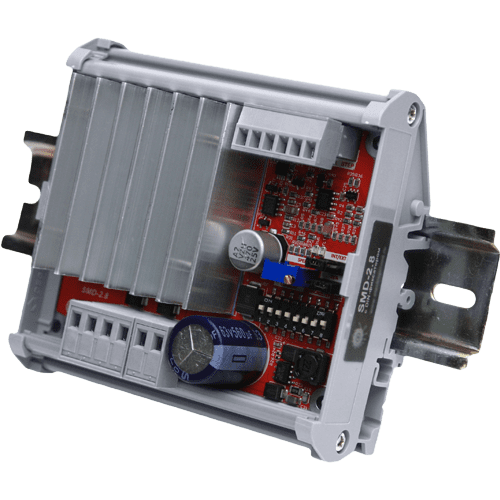

Stepper motor driver SMD‑2.8 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. This compact and lightweight driver is designed for smooth movement of the stepper motor with microstepping up to 1/128, provides excellent dynamics and high motor torque.

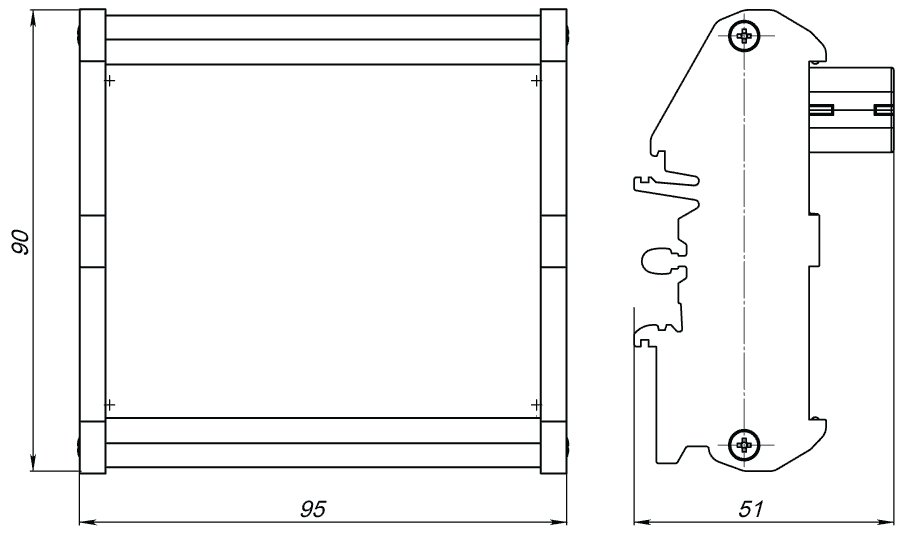

Dimensions of stepper motor driver SMD‑2.8 carrier kit
Description of stepper motor driver SMD‑2.8 carrier kit
Stepper motor driver SMD‑2.8 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. The driver is compact and lightweight and implemented with small in size open housing. The operation of the stepper motor with SMD‑2.8 DIN clamp driver is characterized by low vibration and noise. The driver is designed for smooth movement of the stepper motor with microstepping up to 1/128, provides excellent dynamics and high motor torque.
Control methods of stepper motor driver SMD‑2.8 carrier kit
- Pulse position control STEP/DIR
- Speed control via analog voltage signal 0 - 10 VDC or with built-in potentiometer
