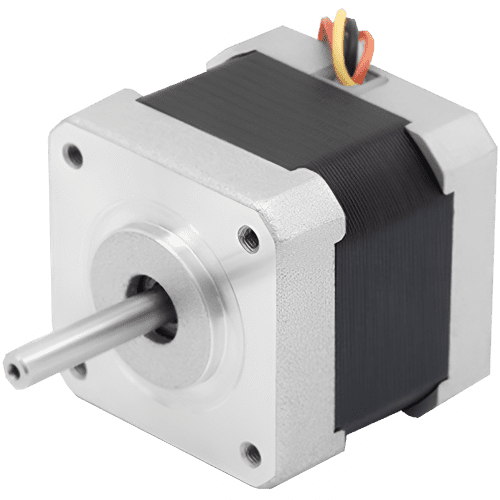

NEMA 17 Stepper motor ST4118L1804-A
Size
NEMA 17
Flange
42 mm
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Length
48.5 mm
High-torque stepper motor in size NEMA 17 (42 mm) with 1.8° step angle (full step) for a wide range of potential applications. An extensive range of customized shaft and cable versions as well as custom-made products are available upon a request.
Technical data
Bipolar connection:
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Phase resistance
1.75 Ohm
Inductance
3.3 mH
Rotor inertia
82 gcm²
Step angle
1.8°
Weight
0.34 kg
Length «A»
48.5 mm
Bipolar connection:
Holding torque
5 kgf∙cm
Current per phase
1.8 A
Phase resistance
1.75 Ohm
Inductance
3.3 mH
Rotor inertia
82 gcm²
Step angle
1.8°
Weight
0.34 kg
Length «A»
48.5 mm

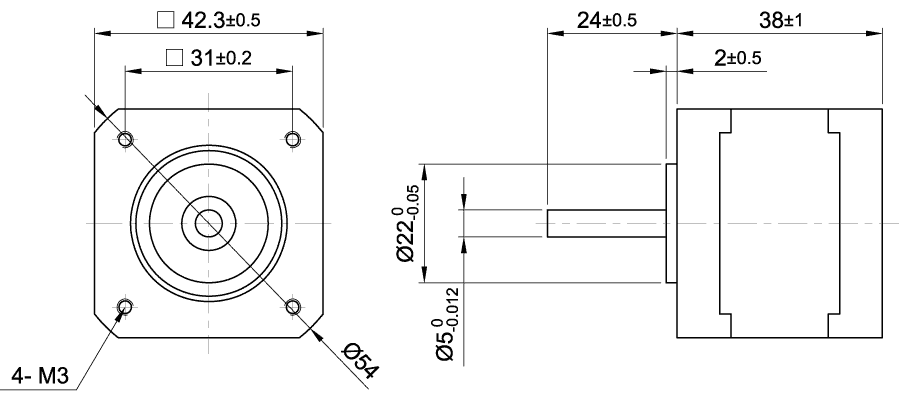

Dimensions of stepper motor ST4118L1804-A
