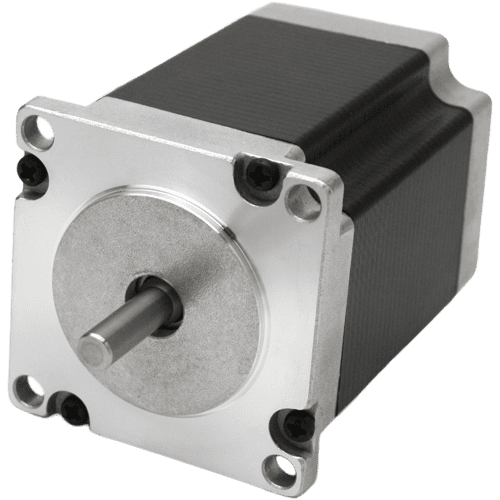

Stepper motor FL57STH76-2804A
Size
NEMA 23
Flange
57 mm
Holding torque
18.9 kgf∙cm
Current per phase
2.8 A
Length
76 mm
The stepper motors FL57STH76-2804A have gained popularity for their versatility and are widely considered an excellent choice for incorporating mechanical components into various robotic projects and mechatronics systems. These models find extensive use in products and applications where precise control of shaft position is crucial.
Technical data
Rotor inertia
480 gcm²
Phase inductance
3.6 mH
Phase resistance
1.13 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
1.0 kg
Rotor inertia
480 gcm²
Phase inductance
3.6 mH
Phase resistance
1.13 Ohm
Step angle
1.8°
Step angle accuracy
±5 %
Weight
1.0 kg

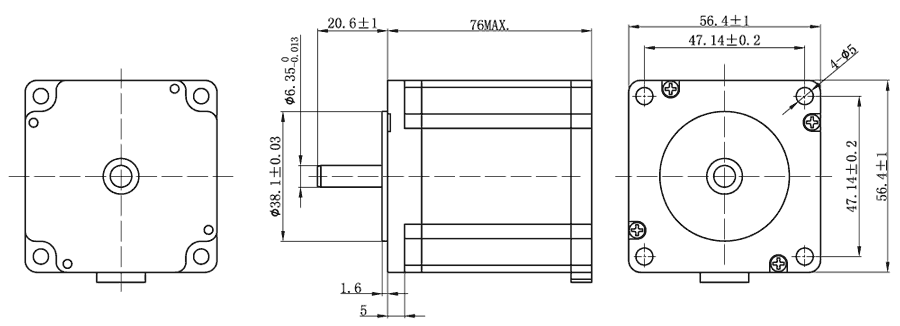

Dimensions of stepper motor FL57STH76-2804A
