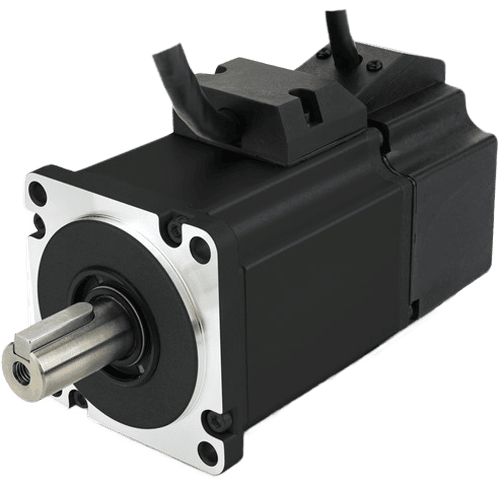

Brushless DC motor APBA60M048030-E
Size
NEMA 24
Flange
60 mm
Rated power
200 W
Voltage
48 V
Rated speed
3000 rpm
With rated power of 200 W, the high-performance BLDC motor APBA60M048030-E not only matches the power of AC servo motors with 60 mm flange but are also mechanically compatible. The DC motors are rated IP65 and comes standard with integrated encoder. The incremental encoder resolution is 2500 CPR.
Technical data
Rated torque
6.53 kgf∙cm
Peak torque
19.58 kgf∙cm
Rated current
6 A
Peak current
18 A
Rotor inertia
210 gcm²
Torque constant
10.7 N∙cm/A
Line to line inductance
1.2 mH
Line to line resistance
0.56 Ohm
Weight
1 kg
Length «A»
110 mm
Encoder
yes
Encoder type
incremental
Encoder resolution
2500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Rated torque
6.53 kgf∙cm
Peak torque
19.58 kgf∙cm
Rated current
6 A
Peak current
18 A
Rotor inertia
210 gcm²
Torque constant
10.7 N∙cm/A
Line to line inductance
1.2 mH
Line to line resistance
0.56 Ohm
Weight
1 kg
Length «A»
110 mm
Encoder
yes
Encoder type
incremental
Encoder resolution
2500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65

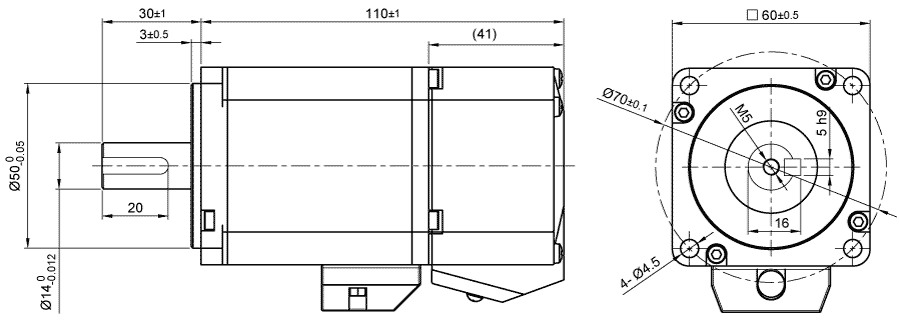

Dimensions of brushless DC motor APBA60M048030-E
