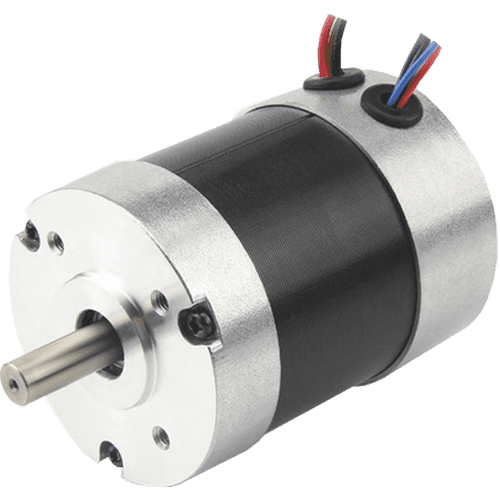

Brushless DC motor DB59S024035R-A
Flange
56 mm
Rated power
84 W
Voltage
24 V
Rated speed
3500 rpm
Brushless DC motor with high efficiency and quiet running properties. With a power output of 84 W, the DB59S024035R-A is one of the most powerful BLDC motors of this size. For higher torques and a wider performance range we offer planetary gearboxes.
Technical data
Rated torque
2.345 kgf∙cm
Peak torque
7.036 kgf∙cm
Rated current
5 A
Peak current
15 A
Rotor inertia
75 gcm²
Torque constant
4.5 N∙cm/A
Line to line inductance
0.63 mH
Line to line resistance
0.57 Ohm
Weight
0.52 kg
Length «A»
53.6 mm
Rated torque
2.345 kgf∙cm
Peak torque
7.036 kgf∙cm
Rated current
5 A
Peak current
15 A
Rotor inertia
75 gcm²
Torque constant
4.5 N∙cm/A
Line to line inductance
0.63 mH
Line to line resistance
0.57 Ohm
Weight
0.52 kg
Length «A»
53.6 mm

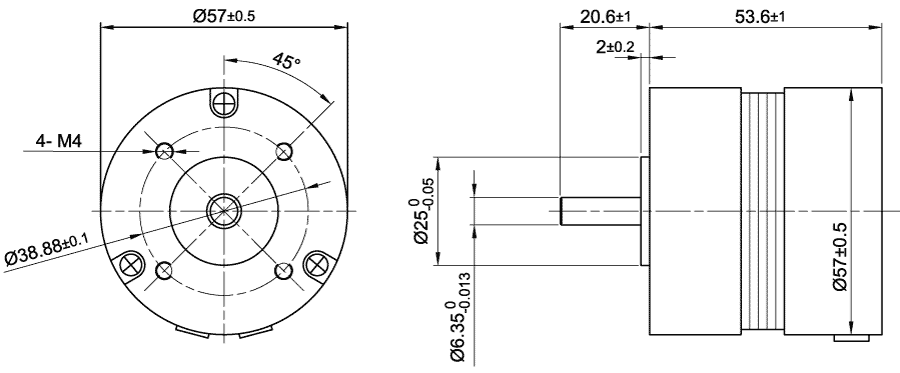

Dimensions of brushless DC motor DB59S024035R-A
