Stepper motor FL86STH80-4208A

Size

NEMA 34

Flange

86 mm

Holding torque

46 kgf∙cm

Current per phase

4.2 A

Length

80 mm

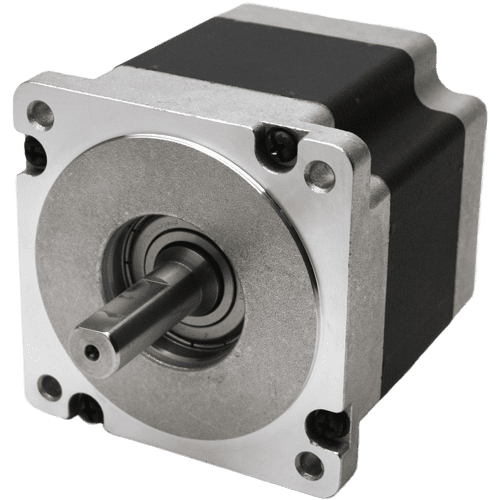

FL86STH80-4208A

The stepper motors FL86STH80-4208A, which fall under the NEMA 34 size category, are recognized for their capacity to deliver high torque. They are typically employed in medium to large-sized industrial equipment and serve as actuators for linear motion systems and CNC machines.

Technical data

Rotor inertia

1400 gcm²

Phase inductance

3.4 mH

Phase resistance

0.75 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

2.3 kg

Rotor inertia

1400 gcm²

Phase inductance

3.4 mH

Phase resistance

0.75 Ohm

Step angle

1.8°

Step angle accuracy

±5 %

Weight

2.3 kg

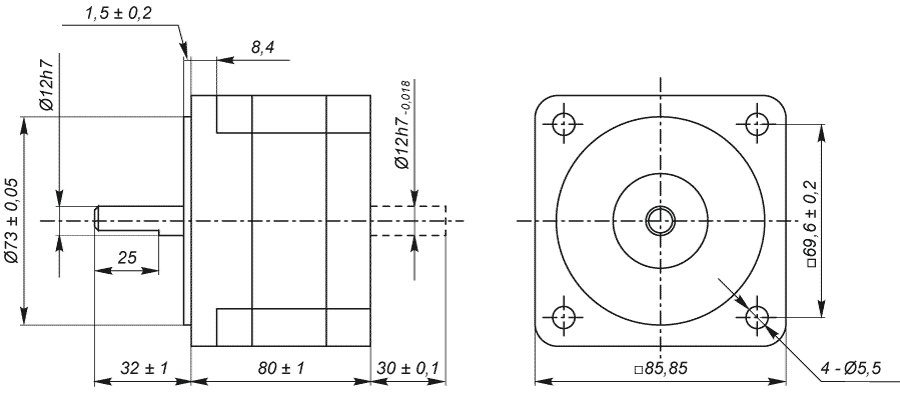

Dimensions of stepper motor FL86STH80-4208A

Dimensions of stepper motor FL86STH80-4208A
