Stepper motor driver SMD-4.2 carrier kit

Voltage

12 – 48 VDC

Max. current per phase

2.7 - 4.2 А

Microstepping

1/1 - 1/256

Control methods

Analog input, STEP/DIR

Version

in an open housing with DIN clamp

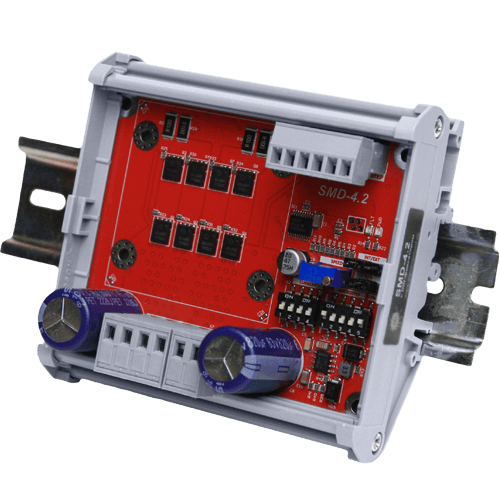

SMD-4.2 carrier kit

Stepper motor driver SMD-4.2 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. This compact and lightweight driver is designed for smooth movement of the stepper motor with microstepping up to 1/256, provides excellent dynamics and high motor torque.

Technical data

Inputs STEP, DIR, ENABLE:

High voltage level

5 - 12 VDC or 24 VDC

Low voltage level

0 - 1 VDC

Maximum frequency of pulse STEP signal

200 kHz

Input SPD:

Voltage range of the control analog signal

0.1 – 10 VDC

Input impedance

30 Ohm

Input current

1 mA

Inputs STEP, DIR, ENABLE:

High voltage level

5 - 12 VDC or 24 VDC

Low voltage level

0 - 1 VDC

Maximum frequency of pulse STEP signal

200 kHz

Input SPD:

Voltage range of the control analog signal

0.1 – 10 VDC

Input impedance

30 Ohm

Input current

1 mA

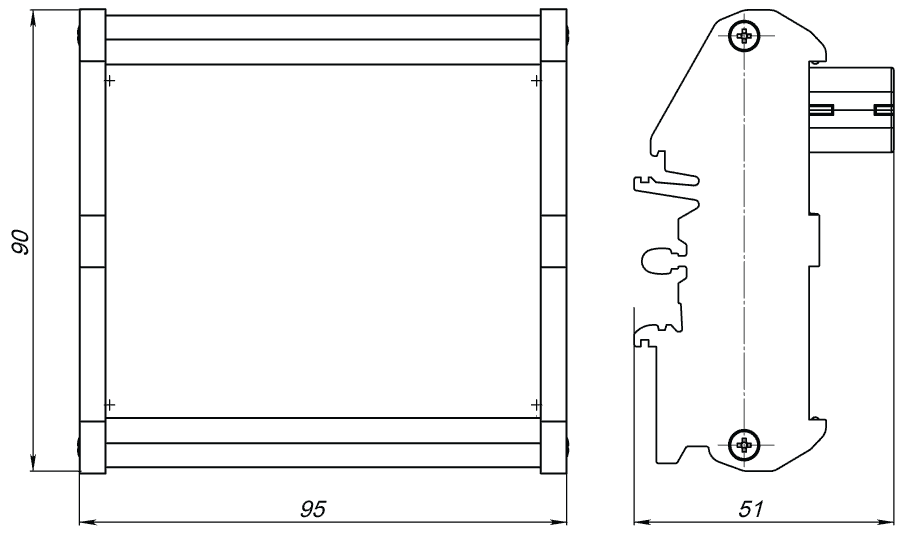

Dimensions of stepper motor driver SMD-4.2 carrier kit

Dimensions of stepper motor driver SMD-4.2 carrier kit

Description of stepper motor driver SMD-4.2 carrier kit

Stepper motor driver SMD-4.2 with DIN clamp is manufactured in an open case. A frameless version of the driver is also supplied. The driver is compact and lightweight and implemented with small in size open housing. The operation of the stepper motor with SMD-4.2 DIN clamp driver is characterized by low vibration and noise. The driver is designed for smooth movement of the stepper motor with microstepping up to 1/256, provides excellent dynamics and high motor torque.

Control methods of stepper motor driver SMD-4.2 carrier kit

  • Pulse position control
    Pulse position control of the stepper motor is provided by standard logic signals STEP/DIR and ENABLE.
  • Analog speed control
    Analog stepper motor speed control can be done in two ways:
    • external voltage signal 0 - 10 VDC;
    • built-in potentiometer.

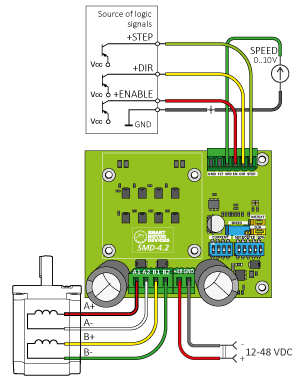

Connection of stepper motor driver SMD-4.2 carrier kit

Connection of stepper motor driver SMD-4.2 carrier kit
