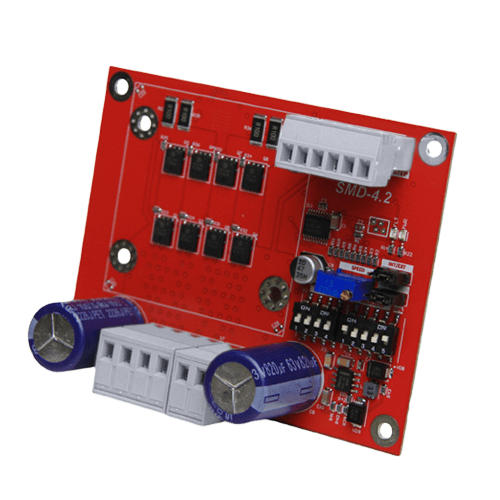

Stepper motor driver SMD-4.2 open frame
Voltage
12 – 48 VDC
Max. current per phase
2.7 - 4.2 А
Microstepping
1/1 - 1/256
Control methods
Analog input, STEP/DIR
Version
open board without housing
Stepper motor driver SMD-4.2 open frame is manufactured in a frameless design, in the form of an open board with mounting holes. There is also a carrier kit version of the driver with a DIN clamp. This compact and lightweight driver is designed for smooth movement of the stepper motor with microstepping up to 1/256, provides excellent dynamics and high motor torque.
Technical data
Inputs STEP, DIR, ENABLE:
High voltage level
5 - 12 VDC or 24 VDC
Low voltage level
0 - 1 VDC
Maximum frequency of pulse STEP signal
200 kHz
Input SPD:
Voltage range of the control analog signal
0.1 – 10 VDC
Input impedance
30 Ohm
Input current
1 mA
Inputs STEP, DIR, ENABLE:
High voltage level
5 - 12 VDC or 24 VDC
Low voltage level
0 - 1 VDC
Maximum frequency of pulse STEP signal
200 kHz
Input SPD:
Voltage range of the control analog signal
0.1 – 10 VDC
Input impedance
30 Ohm
Input current
1 mA

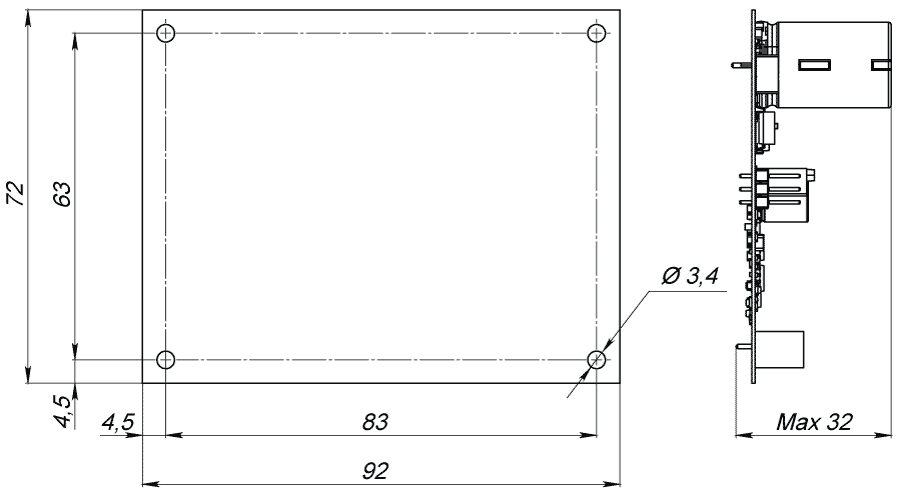

Dimensions of stepper motor driver SMD-4.2 open frame
Description of stepper motor driver SMD-4.2 open frame
The SMD-4.2 stepper motor driver is manufactured in a frameless design, in the form of an open board with mounting holes. There is also a carrier kit version of the driver with a DIN clamp. The compact and lightweight driver is small in size and does not require much space at the installation site. The operation of the stepper motor with SMD-4.2 driver is characterized by low vibration and noise. The driver works with microstepping up to 1/256, provides high motor output torque.
Control methods of stepper motor driver SMD-4.2 open frame
- Pulse position control
Pulse position control of the stepper motor is provided by standard logic signals STEP/DIR and ENABLE. - Analog speed control
Analog stepper motor speed control can be done in two ways: - external voltage signal 0 - 10 VDC;
- built-in potentiometer.

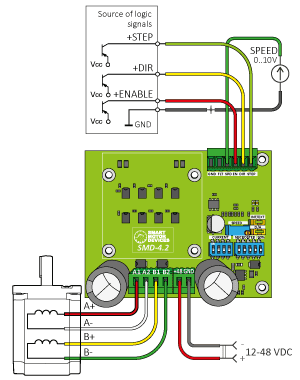

Connection of stepper motor driver SMD-4.2 open frame
