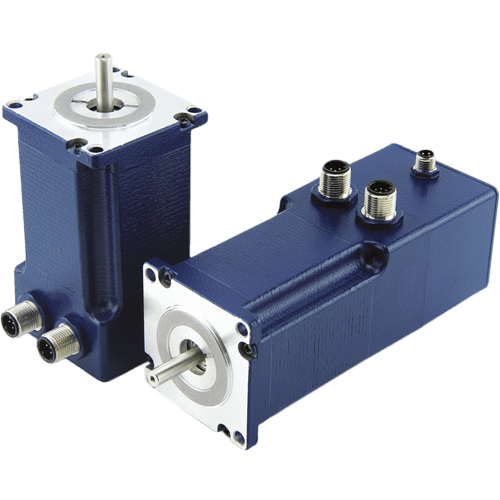

Close loop stepper motor IP65 with encoder AS5918L4204-E
Size
NEMA 23
Flange
56 mm
Holding torque
18.7 kgf∙cm
Current per phase
4.2 A
Length
98 mm
High-torque stepper motor with M12 connector with protection class IP65 (except shaft output) in size NEMA 23 (56 mm) and 1.8° step angle (full step). Identical flange size as the standard motor ST5918, therefore electrically and mechanically interchangeable.
Technical data
Holding torque
18.7 kgf∙cm
Current per phase
4.2 A
Phase resistance
0.58 Ohm
Inductance
1.9 mH
Rotor inertia
480 gcm²
Step angle
1.8°
Brake
no
Encoder
yes
Encoder type
incremental
Encoder resolution
500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Weight
1.14 kg
Length «A»
98 mm
Holding torque
18.7 kgf∙cm
Current per phase
4.2 A
Phase resistance
0.58 Ohm
Inductance
1.9 mH
Rotor inertia
480 gcm²
Step angle
1.8°
Brake
no
Encoder
yes
Encoder type
incremental
Encoder resolution
500 CPR
Operating voltage (encoder)
5 V
IP-protection motor
IP65
Weight
1.14 kg
Length «A»
98 mm

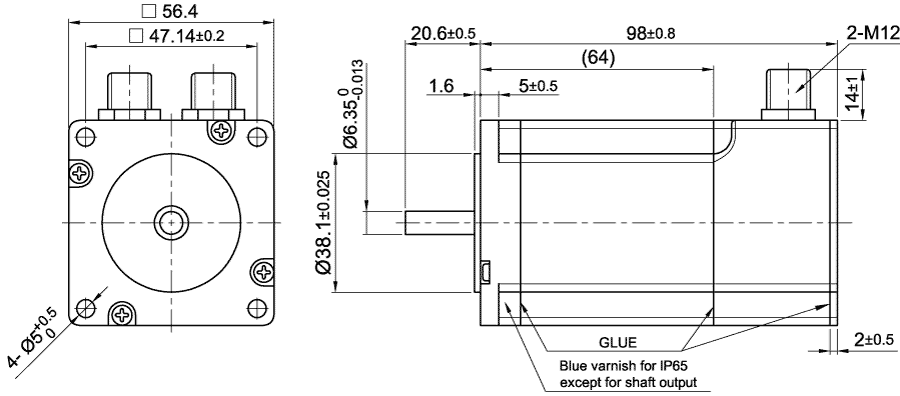

Dimensions of stepper motor IP65 with encoder AS5918L4204-E
